Sand Screening Machine

Unleash the potential of our Sand Screening Machine, crafted by a manufacturer and supplier with over 11 years of impeccable expertise to deliver outstanding screening solutions for diverse applications. Featured among our cutting-edge models are the Track and Wheel Mounted Mobile Screening Machine, the 80 TPH Mobile Screening Machine, the 80TPH Sand Screening Machine, the Silica Sand Separator Machine, and the Coal Screening Plant-all exemplifying incomparable quality and efficiency. Designed for order-specific requirements, this machine excels in adaptability, offering customizable features to match varied industrial demands. Its superior mobility ensures seamless on-site operation, while the high-capacity screening performance provides unmatched throughput, ensuring the best productivity standards in the industry. Our machines stand out with their robust build, promising durability even in demanding conditions, and user-friendly controls that streamline operations. Adding peerless value, they integrate advanced technology for precise sand and material separation, setting a benchmark in modern screening solutions. Available across the domestic market, we guarantee reliable supply all over India, ensuring you benefit from the ultimate in screening technology for your project needs. Choose the Sand Screening Machine to experience performance that is truly second to none.

80TPH Sand Screening Machine

MOQ : 1 Unit

  • Automatic
  • Other, Semi-Automatic
  • Capacity
  • 80 TPH (Tons Per Hour)
  • Color
  • Other, Safety Yellow & Sky Blue
  • Computerized
  • No
  • Control System
  • Other, Electric Panel
  • Cooling System
  • Other, Air Cooled
  • Dimension (L*W*H)
  • 4800 mm x 1700 mm x 2200 mm (approx.)
  • Feature
  • Heavy Duty, Reliable Operation, Easy Maintenance
  • General Use
  • For separating sand and aggregates in construction sites
  • Lifting Height
  • Up to 5 meters
  • Lifting Speed
  • Variable, up to 20 m/min
  • Material
  • Other, Mild Steel Body with high carbon screen mesh
  • Method
  • Other, Vibrating Screen/Rotary Motion
  • Motor Power
  • 7.5 HP Electric Motor
  • Product Type
  • Sand Screening Machine
  • Surface
  • Powder Coated
  • Type
  • Other, Rotary/Drum Vibratory Screening
  • Voltage
  • 415V, 50Hz, 3 Phase
  • Weight (kg)
  • 2200 kg (approx.)

Track And Wheel Mounted Mobile Screening Machine

MOQ : 1 Unit

  • Automatic
  • Yes
  • Capacity
  • Up to 200 TPH
  • Color
  • Other, Industrial Yellow
  • Computerized
  • No
  • Control System
  • Other, PLC Based
  • Cooling System
  • Other, Air/Water Cooled
  • Dimension (L*W*H)
  • 12500 x 2500 x 3200 mm
  • Feature
  • High Efficiency, Low Noise Operation, Easy Mobility, Low Maintenance
  • General Use
  • Sand, Gravel, Aggregate, and Ore Screening
  • Lifting Height
  • Adjustable up to 3.5 m
  • Lifting Speed
  • 0-7 m/min
  • Material
  • Other, Mild Steel
  • Method
  • Other, Vibration & Rotary Screen Separation
  • Motor Power
  • 55 kW
  • Product Type
  • Mobile Screening Machine
  • Surface
  • Powder Coated
  • Type
  • Other, Track & Wheel Mounted
  • Voltage
  • 380-440 V
  • Weight (kg)
  • Approx. 19,500 kg

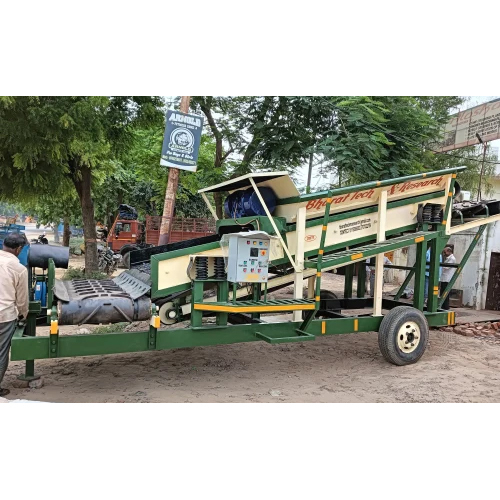

Coal Screening Plant

MOQ : 1 Unit

  • Automatic
  • Other, Semi-Automatic / Automatic
  • Capacity
  • 10 TPH to 250 TPH
  • Color
  • Other, Blue / Green (Customizable)
  • Computerized
  • No
  • Control System
  • Other, PLC or Relay-Based
  • Cooling System
  • Other, Air Cooled / Water Cooled (optional)
  • Dimension (L*W*H)
  • 4300 mm x 2100 mm x 2100 mm (varies with capacity)
  • Feature
  • Heavy Duty, Corrosion Resistant, Easy maintenance
  • General Use
  • Coal Screening and Separation
  • Lifting Height
  • Adjustable, up to 10 meters
  • Material
  • Other, Mild Steel
  • Method
  • Other, Vibration / Rotary Screening
  • Motor Power
  • 5 HP to 30 HP
  • Product Type
  • Screening Plant
  • Surface
  • Painted, Anti-Corrosive
  • Type
  • Other, Industrial Screening Machine
  • Voltage
  • 220V / 380V / 440V
  • Weight (kg)
  • Approx. 5,000 kg

Silica Sand Separator Machine

MOQ : 1 Unit

  • Automatic
  • Yes
  • Capacity
  • 1-10 TPH (Tons Per Hour)
  • Color
  • Other, Blue & Grey
  • Computerized
  • No
  • Control System
  • Other, Panel based, Manual/Automatic
  • Cooling System
  • Other, Air cooled
  • Dimension (L*W*H)
  • Depends on Model, Typical 2500*1200*1500 mm
  • Feature
  • Robust construction, Easy maintenance, High separation accuracy
  • General Use
  • Separation of silica sand from other material in mining and industrial applications
  • Lifting Height
  • Up to 8 meters
  • Lifting Speed
  • Adjustable, up to 20 m/min
  • Material
  • Other, Mild Steel & Stainless Steel
  • Method
  • Other, Vibration and Sieving
  • Motor Power
  • 1.5 HP - 5 HP
  • Product Type
  • Silica Sand Separator Machine
  • Surface
  • Paint Coated
  • Type
  • Other, Vibratory Separator
  • Voltage
  • 220-440 V, 3 Phase
  • Weight (kg)
  • 350 - 1200

80 Tph Mobile Screening Machine

MOQ : 1 Unit

  • Automatic
  • Yes
  • Capacity
  • 80 TPH
  • Color
  • Yellow
  • Computerized
  • No
  • Control System
  • Other, PLC/Manual
  • Cooling System
  • Other, Air Cooled
  • Dimension (L*W*H)
  • 11200 x 2500 x 3200 mm
  • Feature
  • Heavy duty construction, Easy mobility, Low maintenance
  • General Use
  • Crushing and screening of aggregates
  • Lifting Height
  • Adjustable up to 4.5 m
  • Lifting Speed
  • Variable
  • Material
  • Other, Mild Steel
  • Method
  • Other, Mechanical Screening
  • Motor Power
  • 44 kW
  • Product Type
  • Mobile Screening Machine
  • Surface
  • Painted
  • Type
  • Other, Vibratory Mobile Screener
  • Voltage
  • 415 V
  • Weight (kg)
  • 9000 kg

Silica Sand Screener

MOQ : 1 Unit

  • Automatic
  • Other, Semi-Automatic
  • Capacity
  • 500-1500 Kg per hour
  • Color
  • Other, Blue / Metallic
  • Computerized
  • No
  • Control System
  • Other, Manual / Control Panel
  • Cooling System
  • Other, Air Cooled
  • Dimension (L*W*H)
  • 1200 x 1200 x 1200 mm (Approx.)
  • Feature
  • High efficiency, Easy maintenance, Corrosion resistant
  • General Use
  • Screening of silica sand and other granular materials
  • Material
  • Other, Stainless Steel
  • Method
  • Other, Vibration Screening
  • Motor Power
  • 1.5 HP
  • Product Type
  • Screener Machine
  • Surface
  • Polished
  • Type
  • Other, Vibratory Screener
  • Voltage
  • 220-440 V
  • Weight (kg)
  • Approx. 250-500

Mobile Coal Screening Plant

MOQ : 1 Unit

  • Automatic
  • Yes
  • Capacity
  • 100-300 TPH
  • Color
  • Other, Yellow/Black
  • Computerized
  • No
  • Control System
  • Other, PLC-based automated control
  • Cooling System
  • Other, Air cooled
  • Dimension (L*W*H)
  • 14 m x 3.2 m x 3.8 m
  • Feature
  • Mobile, robust chassis, easy relocation
  • General Use
  • Coal sieving, grading, and separation
  • Lifting Height
  • Up to 5 meters
  • Lifting Speed
  • Variable, up to 10 m/min
  • Material
  • Other, High-strength steel
  • Method
  • Other, Vibratory screening
  • Motor Power
  • 22 kW
  • Product Type
  • Mobile Coal Screening Plant
  • Surface
  • Anti-corrosive painted
  • Type
  • Other, Screening Plant
  • Voltage
  • 415V AC, 3 Phase, 50 Hz
  • Weight (kg)
  • 18000
